- Research article
- Open Access
Integrin-Rac signalling for mammary epithelial stem cell self-renewal
Breast Cancer Research volume 20, Article number: 128 (2018)
Stem cells are precursors for all mammary epithelia, including ductal and alveolar epithelia, and myoepithelial cells. In vivo mammary epithelia reside in a tissue context and interact with their milieu via receptors such as integrins. Extracellular matrix receptors coordinate important cellular signalling platforms, of which integrins are the central architects. We have previously shown that integrins are required for mammary epithelial development and function, including survival, cell cycle, and polarity, as well as for the expression of mammary-specific genes. In the present study we looked at the role of integrins in mammary epithelial stem cell self-renewal.
We used an in vitro stem cell assay with primary mouse mammary epithelial cells isolated from genetically altered mice. This involved a 3D organoid assay, providing an opportunity to distinguish the stem cell- or luminal progenitor-driven organoids as structures with solid or hollow appearances, respectively.
We demonstrate that integrins are essential for the maintenance and self-renewal of mammary epithelial stem cells. Moreover integrins activate the Rac1 signalling pathway in stem cells, which leads to the stimulation of a Wnt pathway, resulting in expression of β-catenin target genes such as Axin2 and Lef1.
Integrin/Rac signalling has a role in specifying the activation of a canonical Wnt pathway that is required for mammary epithelial stem cell self-renewal.
The mammary gland is a highly regenerative organ that continuously undergoes tissue remodelling in female mammals during their sexually active life . During each oestrous cycle, cells proliferate and form alveolar buds at the tertiary side branches and then regress in an ordered fashion . A further lobuloalveolar differentiation takes place in pregnancy, with the epithelia expanding dramatically to fill the whole fat pad with milk-secreting structures . Upon weaning, involution is triggered to clear up all milk-secreting cells and return the gland to a non-pregnant state . These extensive tissue-remodelling processes repeat with each oestrus cycle and pregnancy.
The presence of mammary epithelial stem cells (MaSCs) is the driving force behind this high regenerative capacity . Their existence and potency has been demonstrated by serial transplantation studies. Single-cell transplant experiments have identified MaSCs as β1-integrinhiCD24+ cells, although α6-integrinhiCD24+ can also be used to identify MaSCs [33, 36]. These observations suggest that MaSCs express high levels of specific integrins, all of which are cell-extracellular matrix (ECM) receptors.
Integrins are central for the behaviour of mammary epithelial cells (MECs) [30, 37]. However, their role in MaSCs has not been elucidated. MECs can assemble several integrin heterodimers, including two collagen receptors (α1β1 and α2β1), three laminin receptors (α3β1, α6β1 and α6β4), and three receptors that bind to RGD-containing ECM proteins such as vitronectin and fibronectin (α5β1, αvβ1 and αvβ3) [19, 20, 31]. Because bipotent cells express high levels of β1-integrin, their signalling may play an important role. Function-perturbing antibodies that block β1-integrin, but not those that block α6-integrin, dramatically reduce the number of terminal end buds during pubertal mammary gland development . Genetic deletion of β1-integrin in basal mammary cells abolishes the regenerative potential of the epithelium and impairs ductal and lobuloalveolar development at pubertal and pregnancy stages . Although these observations suggest an important role of β1-integrin in bipotent cells, direct evidence is still missing.
To directly address the functional importance of β1-integrin signalling in bipotent cells, we examined their role using a 3D organoid assay for mammary stem cells . Our findings reveal that the β1-integrin/Rac1 signalling axis regulates the maintenance and self-renewal of bipotent cells through Wnt signalling. In contrast, a Rac1-independent β1-integrin signalling pathway is involved in the maintenance of the luminal progenitor pool.
Primary cell culture
Mammary glands were extracted from 8- to 12-week-old wild-type female (Institute of Cancer Research (ICR)) mice or β1-integrin, Rac1, ILK conditional knockout mice, and enzymatically digested with collagenase/trypsin mix (195 ml of H2O + 9.8 mg F-10 medium [Sigma-Aldrich, St. Louis, MO, USA], 120 mg of NaHCO3 HEPES-Na [Sigma-Aldrich], 150 mg of trypsin [840-7250; Life Technologies, Carlsbad, CA, USA], 300 mg of collagenase A [Roche Life Sciences, Indianapolis, IN, USA], 5 ml of FBS [Lonza, Walkersville, MD, USA]) for 1 h at 37 °C. Cells were spun for 1 min at 300 rpm, and the pellet was re-digested with collagenase/trypsin mix for an additional 30 min while the supernatant was spun for 3 min at 800 rpm. The pellet was kept on ice and labelled pellet 1, and the supernatant was spun at 1500 rpm for 10 min. The pellet from this wash was saved on ice and labelled pellet A. After the second digestion was completed, cells were spun at 800 rpm for 3 min. The pellet obtained was labelled pellet 2. The supernatant was spun for 10 min at 1500 rpm. The supernatant from this wash was then discarded, and the pellet was labelled pellet B. Pellets A and B were combined and washed with Ham’s F-12 medium (Lonza) by spinning at 800 rpm for 3 min. This pellet was labelled pellet 3, and the supernatant was discarded. Pellets 1, 2 and 3 were pooled and washed with 15 ml of Ham’s F-12 by spinning at 800 rpm for 3 min. This washing step was repeated three times. This method enriches for organoids that contain epithelial cells, whereas the washing steps removed other types of cells such as fibroblasts and haematopoietic cells. To culture cells on 2D collagen, plastic plates were coated with collagen I extracted from rat tails at a density of 100 μg/cm2 or laminin-rich reconstituted basement membrane coating, growth factor-reduced Matrigel (EHS) (BD Biosciences, San Jose, CA, USA) at 20 μl/cm2, conditioned for 1 h at 37 °C with 2× Ham’s F-12 media, 20% FBS, 1 mg/ml fetuin (Sigma-Aldrich), 200 U/ml penicillin, 200 μg/ml streptomycin, 100 μg/ml gentamicin, 0.5 μg/ml Fungizone, 10 μg/ml insulin, 2 μg/ml hydrocortisone, and 20 ng/ml epidermal growth factor (EGF) (Sigma-Aldrich). Cells were resuspended in equal volume in Ham’s F-12 media, seeded at a 2.5 × 105cells/cm2 on collagen or at 5 × 105 cells/cm2 on EHS plates, fed on alternate days with Ham’s F-12 media supplemented with 10% FBS, 100 U/ml penicillin, 100 μg/ml streptomycin, 50 μg/ml gentamicin, 0.25 μg/ml Fungizone, 5 μg/ml insulin, 1 μg/ml hydrocortisone, and 10 ng/ml EGF. To induce gene deletion of β1-integrin genes in cells isolated from β1-integrinfx/fx,Cre-ERTm mice, 4-hydroxytamoxifen (4-OHT) was added at a final concentration of 100 nM. When necessary, immunoblotting was done with antibodies to β-catenin (9582; Cell Signaling Technology, Danvers, MA, USA) and Lamin-B1 (ab16048; Abcam, Cambridge, UK).
Organoid formation assay
For organoid-forming assays, cells were grown at a clonal density of 2 × 103 cells/cm2 in 24-well ultra-low attachment plates that had been coated with 1.2% poly(2-hydroxyethyl methacrylate) to prevent adhesion and growth of the primary MECs. The cells were grown in media containing EPiCult-B media (STEMCELL Technologies, Vancouver, BC, Canada) supplemented with 5% Matrigel, 5% FBS, 10 ng/ml EGF, 20 ng/ml basic fibroblast growth factor, 4 mg/ml heparin, and 10 μM Y-27632. Cells were left for 10 days to form organoids, which were then counted. For activating Wnt signalling in organoid cultures, recombinant mouse Wnt3A (R&D Systems, Minneapolis, MN, USA) or glycogen synthase kinase 3 (GSK3) inhibitor (GSK3i, CHIR99021; Sigma-Aldrich) was added to the organoid cultures on day 0 at concentrations of 100 ng/ml or 50 nM, respectively. For gene expression analysis, RNA was collected from cells on day 2, and the RNA expression was measured using qRT-PCR. Note that addition of Rock inhibitor (Y-27632) is important for the expansion of pluripotent stem cells because it helps maintain the stem cells in their undifferentiated state, and they survive longer in culture, and note also that the Rock inhibitor increases the efficiency of colony formation.
Cell sorting and analysis using flow cytometry
To stain cells using fluorescence-activated cell sorting antibodies for analysis or sorting, cells were first dissociated into single cells. To obtain single cells from organoids, cell pellets were incubated in 2 ml of Trypsin-Versene (Lonza) for 2 min at 37 °C, mechanically dissociated with rapid pipetting, then incubated with 1 μg/ml DNase (New England BioLabs, Ipswich, MA, USA) for 5 min at 37 °C. Cells were washed with complete media and spun at 1500 rpm for 5 min, then strained through a 0.45-μm cell strainer to obtain single cells. Cells were washed with 1× PBS and resuspended in 400 μl of sorting buffer (2.5% FBS in PBS). To stain cells, 3 μl of each directly labelled antibody was added per 10 million cells and incubated on ice for 1 h, washed with sorting buffer, resuspended in sorting buffer, and sorted using a BD FACSAria cell sorter (BD Biosciences). Antibodies used for sorting experiments were as follows: epithelial cell adhesion molecule (EpCAM)-allophycocyanin (APC) (175791; eBioscience, San Diego, CA, USA), CD24-APC (170242; eBioscience), β1-integrin-eFluor 450 (48-0291; eBioscience), and α6-integrin-eFluor 450 ( 48-0495; eBioscience).
Lentivirus production and infection of primary cells
pLVTHM plasmid was obtained from Addgene (12247; Addgene, Cambridge, MA, USA). The lentiviral envelope plasmid CMV-VSVg (PMD2G; Addgene) and packaging plasmid psPAX2 were kindly provided by the TronoLab (Lausanne, Switzerland). All oligonucleotides for sequencing, PCR, and mutagenesis were obtained from Sigma-Aldrich. 293T cells were transfected for 6 h at a confluence of 50–70% with 6 μg of PLVTHM control vector, 3 μg of psPAX2 and 4.5 μg of PMDG.2 plasmids using 1× polyethylenimine transfection reagent. Primary MECs were transduced with virus in six-well plates under low-attachment conditions in organoid-forming media containing 1 μg/ml polybrene; media were changed the next day, another infection was performed, media were changed and the cells were left for additional 48 h before being sorted for green fluorescent protein expression. Integrin-fx mice were used for most studies where the integrin was deleted. In some experiments (e.g., Fig. 3e, f), β1-integrin was depleted using short hairpin RNA (shRNA); this approach in mammary cells is successful in reducing the integrin to barely detectable levels, as shown previously [2, 28].
RNA extraction and qPCR
Primers were designed to anneal only to complementary DNA and not to genomic DNA, at the junction between two exons. qPCR was performed using a StepOnePlus qPCR instrument (Thermo Fisher Scientific, Waltham, MA, USA): uracil DNA-glycosylase was activated (50 °C, 2 min), followed by AmpliTaq DNA polymerase (Thermo Fisher Scientific) activation (95 °C, 2 min); PCR cycles were performed by 40 repeated cycles of DNA denaturation (95 °C, 15 s), followed by DNA extension (60 °C, 1 min).
Rac1 activation assay
Lysates from primary MECs were applied to a multi-well plate containing a Rac1-GTP binding protein (GLisa Rac1 activity assay, catalogue no. BK128; Cytoskeleton, Denver, CO, USA). Active Rac1 present in the lysates was captured in the wells and detected using an anti-Rac1 antibody coupled to a colorimetric assay. Finally, absorbance was read using a PowerWave 340 plate reader (BioTek, Winooski, VT, USA) at 490 nm.
Statistical analysis was done using Excel (Microsoft, Redmond, WA, USA) or Prism (GraphPad Software, La Jolla, CA, USA) data analysis software. Statistical significance was determined by Student’s t test for paired samples when comparing two groups. One-way analysis of variance was used when comparing more than two groups. Differences between samples were significantly different at p < 0.05. For all graphs shown, error bars represent SEM. For two groups, the means have one to four asterisks centred over the error bar to indicate the relative level of the p value: * p < 0.05, ** p < 0.01, *** p < 0.001, and **** p < 0.0001.
β1-integrins are required for the maintenance and self-renewal of mammary epithelial stem cells
The initial aim of these studies was to address the functional requirement of β1-integrin for bipotent cells and luminal progenitors. Primary MECs were isolated from adult double-transgenic mice (β1-integrinflox/flox;Rosa-CreERT2) and cultured as single cells in organoid media at a density of 5 × 105/well in ultra-low-attachment six-well plates. They were treated with 4-OHT to induce Cre-recombinase activity, thereby deleting the β1-integrin gene. Loss of β1-integrin was confirmed at both messenger RNA (mRNA) and protein levels by qRT-PCR and immunofluorescence analysis (Fig. 1a, b).
Cells were then dissociated into single cells and cultured in organoid-forming media for 10 days, and the organoids that formed were counted. Deletion of β1-integrin abolished the formation of both solid and hollow organoids (Fig. 1c, d), suggesting that β1-integrin is functionally required for both bipotent cells and luminal progenitors.
β1-integrin-null MECs analysed by flow cytometry revealed that loss of β1-integrin led to reduced populations of bipotent cell-enriched basal (CD49fhi, EpCAM+) and luminal (CD49flo, EpCAM+, CD49bhi) progenitors, but not the differentiated luminal cells (Fig. 1e, f). Treatment of wild-type MECs with 4-OHT confirmed that the observed β1-integrin-null phenotypes were due to loss of β1-integrin function rather than to 4-OHT itself (Additional file 1: Figure S1). Note that in our studies, we looked at the luminal progenitors without segregating the ER− and ER+ populations; only those expressing CD49b were able to form organoids (Additional file 2: Figure S2) . These results indicate that β1-integrin is functionally required for the maintenance and self-renewal of both bipotent cells and luminal progenitor cells.
β1-integrins influence mammary stem cells via Rac1
β1-integrin can regulate cellular processes through different downstream signalling pathways via integrin-binding proteins [16, 28, 32]. Loss of function of integrin-linked kinase (ILK), but not focal adhesion kinase (FAK), recapitulates, at least in part, the phenotype of β1-integrin-deficient MECs . One of the major downstream effectors of β1-integrin is the small GTPase Rac1 [1, 16]. We therefore asked whether the bipotent cells and luminal progenitor phenotypes of β1-integrin-null MECs could be reiterated by either ILK or Rac1 gene deletion.
MECs were isolated from double-transgenic mice (ILKflox/flox;Rosa-CreERT2 and Rac1flox/flox;Rosa-CreERT2) and treated with 4-OHT to generate cells deficient in expressing ILK- or Rac1 mRNA (Fig. 2a, c) . ILK gene deletion had no significant effect on the ability of MECs to form solid or hollow organoids (Fig. 2b). In contrast, Rac1 deletion decreased the formation of solid organoids, though it had no effect on hollow organoids (Fig. 2d). To confirm this result, we treated wild-type MECs with EHT1864, a specific and irreversible Rac1 inhibitor (Fig. 2e) . MECs formed fewer solid organoids, but there was no effect on hollow organoids (Fig. 2f). Rac1, but not ILK, is therefore required for bipotent cell maintenance and self-renewal, though both Rac1 and ILK are dispensable for the maintenance of luminal progenitors that form hollow organoids.
To determine whether a constitutively active form of Rac1 (Rac1F28) could rescue the β1-integrin-null bipotent cell phenotype, we transduced wild-type MECs with a β1-integrin shRNA together with Rac1F28 . As with β1-integrin gene deletion, β1-integrin knockdown abolished the formation of both solid and hollow organoids (Fig. 2g, h). Ectopic Rac1F28 expression in these cells rescued the formation of solid but not hollow organoids.
These results indicate that β1-integrin regulates bipotent cell maintenance and self-renewal in a Rac1-dependent manner. In contrast, the effect of β1-integrin on luminal progenitor cells is Rac1-independent.
Integrin-Rac signalling maintains mammary epithelial stem cells through a Wnt pathway
To identify downstream pathways that might link β1-integrins with bipotent cell maintenance, we examined the expression of genes previously associated with stem and progenitor identity . RNA was extracted from MECs isolated from β1-integrinflox/flox;Rosa-CreERT2 mice, which were treated with 4-OHT and cultured in organoid media for 2 days. The levels of transcription factors associated with bipotent cells such as Slug, MEF2, p63 or Twist were not altered in β1-integrin-deficient MECs (Fig. 3a). In contrast, those specifically known to mark luminal progenitors, Sox9, ELF5 and Sox10 genes, were downregulated (Fig. 3b).
Wnt is an important regulator of bipotent cell maintenance and self-renewal, so we analysed expression of known Wnt/β-catenin downstream targets. Both Axin2 and Lef1 transcripts were significantly downregulated in β1-integrin-deficient cells (Fig. 3c). Because β1-integrin signalling regulates bipotent cells through Rac1, we also analysed Axin2 and Lef1 in Rac1-deficient MECs and found that they were similarly downregulated in the absence of Rac1 (Fig. 3d). Importantly, ectopic expression of Rac1F28 rescued their levels in cells lacking β1-integrins (Fig. 3e, f). These results reveal that β1-integrin/Rac1 signalling influences canonical Wnt signalling pathway in bipotent cells.
Notch signalling is negatively regulated by Wnt . Moreover it restricts bipotent cell self-renewal and promotes lineage commitment and differentiation into a luminal epithelial fate . We therefore analysed expression of the Notch target genes, Hes1, Hes5, Hey1 and Hey2, in β1-integrin- or Rac1-null cells. In each case, these target genes were upregulated in β1-integrin-deficient MECs (Fig. 3g). In contrast, their levels were not altered in Rac1-deficient MECs, except for a slight reduction in Hes1 transcript levels (Fig. 3h).
These results indicate that β1-integrin regulates bipotent cells through Wnt signalling in a Rac1-depenent manner. Integrins may regulate luminal progenitors via Notch signalling, but this occurs in a Rac1-independent manner.
Rac1 regulates the nuclear translocation of β-catenin in mammary epithelial stem cells
To reveal the mechanism by which β1-integrin/Rac1 signalling regulates Wnt signalling in bipotent cells, we performed phenotype rescue experiments. Wnt signalling was activated in β1-integrin-deficient MECs either with the soluble Wnt3A ligand or with a GSK3i.

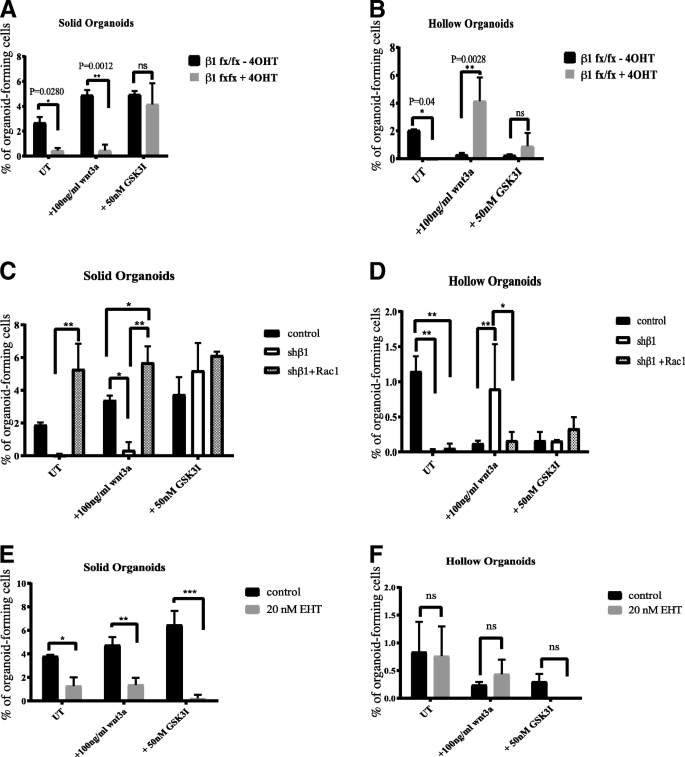

In wild-type MECs, increased Wnt signalling via either Wnt3A or GSK3i led to an increase in solid organoids and a decrease in hollow organoids (black bars in Fig. 4a, b). In β1-integrin-deficient MECs, GSK3i (but not Wnt3A) rescued the formation of solid organoids (Fig. 4a). In contrast, Wnt3A rescued hollow organoid formation (Fig. 4b).
Because we showed that β1-integrins influence Wnt signalling in bipotent cells, we examined whether this might occur via β-catenin localisation. β-catenin translocates into the nucleus to interact with TCF transcription factors and thereby activate Wnt target gene expression. We examined whether GSK3i could increase nuclear β-catenin levels in β1-integrin-deleted MECs. Indeed, GSK3i-treated β1-integrin-deficient MECs showed similar levels of nuclear β-catenin as the β1-integrin-proficient MECs (not treated with 4-OHT) that were activated by either Wnt3A or GSK3i (Additional file 3: Figure S3). The Wnt3A-treated β1-integrin-deficient MECs did not show this nuclear accumulation of β-catenin. Thus, activating Wnt signalling with GSKi allows β-catenin to translocate to the nucleus, even in integrin-deleted MECs.
To determine whether Rac1 is involved with β1-integrin-dependent Wnt signalling, we examined organoid formation after ectopic expression of RacF28. In β1-integrin-deficient MECs, Rac1F28 and GSK3i both rescued solid organoid formation (Fig. 4c).
In contrast, neither Rac1F28 nor GSK3i could rescue the impaired hollow organoid formation of β1-integrin-deficient MECs (Fig. 4b, d). Thus, crosstalk between Rac1-independent β1-integrin signalling and the non-canonical Wnt signalling pathways may regulate the luminal progenitor cell population.
Rac1 is a key node downstream of many signalling pathways. We therefore asked whether Rac1 inhibition fully recapitulated the β1-integrin-deficient Wnt phenotype. Organoid formation was assessed in EHT1846-treated cells in the absence or presence of Wnt3A or GSK3i. This impaired solid organoid formation but had no effect on hollow organoids (Fig. 4e, f) – similar to genetic deletion of Rac1 in MECs (Fig. 2d). Neither Wnt3A nor GSK3i could rescue this phenotype, suggesting that pathways other than those involving β1-integrin signalling may also be involved in Rac1 activation in bipotent cells.
Our results indicate that integrin-Rac signalling regulates bipotent cells through Wnt in a pathway that involves nuclear translocation of β-catenin. In contrast, integrin-dependent luminal progenitors are Rac1-independent and likely involve non-canonical Wnt signalling as well as Notch signalling pathways.
In this study, we have discovered a central role for integrins in stem cell maintenance and self-renewal within the mammary gland. Integrins are receptors for the ECM that contacts all mammary epithelia, and our genetic approach has revealed their requirement for stem cells. We found that β1-integrin maintains stem cells via a signalling pathway that involves both the small GTPase Rac1, as well as Wnt. These latter signalling proteins are known to determine the nuclear localisation of the β-catenin. We suggest that in stem cells, integrins have a new role in specifying the activation of Wnt and β-catenin.
Integrins in mammary epithelial cells
Integrins are central to the function of metazoan cells . In the mammary gland, they connect cells to the ECM and activate cytoplasmic signalling pathways that control all aspects of cell function . We have previously shown that integrins are essential in MECs for their survival, proliferation, and nuclear architecture; for the formation of a correctly polarised shape; and for functional differentiation into milk-producing lactating cells [2, 16, 26, 39].
In order to carry out these behaviours, integrins establish complex multi-component adhesion complexes that link ECM signals to intracellular signalling platforms and to the cytoskeleton . In normal, non-transformed MECs, integrins signal directly to the cytoskeleton via talin and vinculin and to enzymatic pathways via ILK [3, 47]. Although FAK is a key integrin-binding partner, genetic studies have shown that it is not required for the development and function of normal MECs in vivo .
The role of integrins in bipotent cells has not been examined directly before. In this study, we have used genetic approaches to delete β1-integrin and demonstrated that both bipotent cells and luminal progenitor cells require β1-integrin function. This extends the role of integrins in mammary gland biology to include the survival and maintenance of stem cells.
Rac signalling in mammary epithelial cells
Signalling components downstream of integrins include the small GTPases. Both the Ras and Rho families of GTPases are crucial for breast cell function . These proteins serve to interpret both growth factor signals as well as those within the immediate ECM microenvironment . We have previously demonstrated that Rac1 is required for many aspects of MEC behaviour, including cell cycle, expression of milk proteins, and for tissue modelling during pregnancy and post-lactational involution .
Here we reveal a novel and central role for Rac1 in mammary epithelia, which is required for bipotent cells downstream of β1-integrin signalling. The major Rac isoform in MECs is Rac1 . We found that when Rac1 is removed genetically, or if Rac is inhibited with a chemical, EHT1864, bipotent cells are deficient in their ability to form solid organoids. Moreover, the similar phenotype that occurs after β1-integrin genetic deletion is fully rescued by the expression of an active form of Rac1. Thus, integrin-Rac1 signalling is essential for MEC function, and this is now extended to the maintenance and organoid-forming ability of bipotent cells.
Wnt signalling in mammary epithelial cells
The involvement of β1-integrins in controlling key transcription factors in mammary epithelia has been studied mainly in alveolar differentiation, milk production and the cell cycle [23, 28]. It is not yet known whether β1-integrin regulates transcription factors that are required for mammary stem or progenitor cells.
Wnt signalling has a key role in stem cell activity in the mammary gland . Moreover Wnt/β-catenin signalling in breast cancer is hyperactive in the basal-like and cancer stem cells that have high levels of β1-integrin . In the embryo, Wnt promotes placode development and is required for initiation of mammary gland morphogenesis [6, 10, 45]. Wnt is also important in post-natal mammary branching morphogenesis, and for bud and alveolar formation during pregnancy [5, 8, 25, 41]. Lineage-tracing experiments showed that Wnt/β-catenin controls both luminal and basal lineages, depending on the developmental stage of the mammary gland .
However, how stem cells sense the microenvironment via adhesion receptors and then activate Wnt/β-catenin signalling to maintain their stem cell property is not understood. Axin2 is a direct target gene of the canonical Wnt/β-catenin pathway, enabling its mRNA to be used as a readout for Wnt activity [11, 17, 21]. Moreover, Axin2-expressing cells have stem cell activity in the mammary gland . Activating the canonical pathway requires the extracellular ligand for Wnt signalling to bind to receptor complexes containing Frizzled and Lrp5/6 proteins. This recruits the Axin/APC/GSK3β destruction complex to the plasma membrane, which prevents GSK3β phosphorylating and thus marking β-catenin for degradation. Consequently, cytoplasmic β-catenin is stabilised and translocates into the nucleus, where it induces the transcription of activation of target genes such as Lef1 and Axin2 [2, 17].
Although β1-integrin and Wnt signalling are both crucial for stem cell maintenance, it has not previously been established whether these pathways interact. Rac1 may be a crucial component of Wnt signalling in lymphoid cells and fibroblasts because it controls β-catenin translocation into the nucleus. In response to activation of the Wnt pathway by Wnt3a, Rac1 activates c-Jun N-terminal kinase 2 (JNK2), which phosphorylates β-catenin and promotes its nuclear translocation [15, 48]. Rac1 may also be directly activated by Wnt3a [42, 48].
We have now established a novel link between β1-integrin-Rac and canonical Wnt signalling in the mammary gland. Notably, β1-integrin-Rac signalling affects the expression of Wnt target genes. Moreover, activating Wnt signalling by inhibiting GSK3β rescued stem cell frequency in β1-integrin-null cells.
The main conclusion of the present study is that integrins are essential for the maintenance of mammary epithelial progenitor cells. Our data reveal a role for β1-integrin-Rac signalling in the translocation of β-catenin into the nucleus, thereby activating the transcription of Wnt target genes and mammary stem cell pathways.
Mammary stem cell
Mammary epithelial cell
Akhtar N, Streuli CH. Rac1 links integrin-mediated adhesion to the control of lactational differentiation in mammary epithelia. J Cell Biol. 2006;173:781–93.
Akhtar N, Streuli CH. An integrin-ILK-microtubule network orients cell polarity and lumen formation in glandular epithelium. Nat Cell Biol. 2013;15:17–27.
Akhtar N, Marlow R, Lambert E, Schatzmann F, Lowe ET, Cheung J, Katz E, Li W, Wu C, Dedhar S, et al. Molecular dissection of integrin signalling proteins in the control of mammary epithelial development and differentiation. Development. 2009;136:1019–27.
Akhtar N, Li W, Mironov A, Streuli CH. Rac1 controls both the secretory function of the mammary gland and its remodeling for successive gestations. Dev Cell. 2016;38:522–35.
Badders NM, Goel S, Clark RJ, Klos KS, Kim S, Bafico A, Lindvall C, Williams BO, Alexander CM. The Wnt receptor, Lrp5, is expressed by mouse mammary stem cells and is required to maintain the basal lineage. PLoS One. 2009;4:e6594.
Boras-Granic K, Chang H, Grosschedl R, Hamel PA. Lef1 is required for the transition of Wnt signaling from mesenchymal to epithelial cells in the mouse embryonic mammary gland. Dev Biol. 2006;295:219–31.
Bouras T, Pal B, Vaillant F, Harburg G, Asselin-Labat ML, Oakes SR, Lindeman GJ, Visvader JE. Notch signaling regulates mammary stem cell function and luminal cell-fate commitment. Cell Stem Cell. 2008;3:429–41.
Brisken C, Heineman A, Chavarria T, Elenbaas B, Tan J, Dey SK, McMahon JA, McMahon AP, Weinberg RA. Essential function of Wnt-4 in mammary gland development downstream of progesterone signaling. Genes Dev. 2000;14:650–4.
Campbell ID, Humphries MJ. Integrin structure, activation, and interactions. Cold Spring Harb Perspect Biol. 2011;3(3):a004994.
Chu EY, Hens J, Andl T, Kairo A, Yamaguchi TP, Brisken C, Glick A, Wysolmerski JJ, Millar SE. Canonical WNT signaling promotes mammary placode development and is essential for initiation of mammary gland morphogenesis. Development. 2004;131:4819–29.
Gehrke I, Gandhirajan RK, Kreuzer KA. Targeting the WNT/β-catenin/TCF/LEF1 axis in solid and haematological cancers: multiplicity of therapeutic options. Eur J Cancer. 2009;45:2759–67.
Glukhova MA, Streuli CH. How integrins control breast biology. Curr Opin Cell Biol. 2013;25:633–41.
Gu B, Watanabe K, Sun P, Fallahi M, Dai X. Chromatin effector Pygo2 mediates Wnt-notch crosstalk to suppress luminal/alveolar potential of mammary stem and basal cells. Cell Stem Cell. 2013;13:48–61.
Guo W, Keckesova Z, Donaher JL, Shibue T, Tischler V, Reinhardt F, Itzkovitz S, Noske A, Zürrer-Härdi U, Bell G, et al. Slug and Sox9 cooperatively determine the mammary stem cell state. Cell. 2012;148:1015–28.
Jamieson C, Lui C, Brocardo MG, Martino-Echarri E, Henderson BR. Rac1 augments Wnt signaling by stimulating β-catenin–lymphoid enhancer factor-1 complex assembly independent of β-catenin nuclear import. J Cell Sci. 2015;128:3933–46.
Jeanes AI, Wang P, Moreno-Layseca P, Paul N, Cheung J, Tsang R, Akhtar N, Foster FM, Brennan K, Streuli CH. Specific β-containing integrins exert differential control on proliferation and two-dimensional collective cell migration in mammary epithelial cells. J Biol Chem. 2012;287:24103–12.
Jho E, Zhang T, Domon C, Joo CK, Freund JN, Costantini F. Wnt/beta-catenin/Tcf signaling induces the transcription of Axin2, a negative regulator of the signaling pathway. Mol Cell Biol. 2002;22:1172–83.
Klinowska TC, Soriano JV, Edwards GM, Oliver JM, Valentijn AJ, Montesano R, Streuli CH. Laminin and β1 integrins are crucial for normal mammary gland development in the mouse. Dev Biol. 1999;215:13–32.
Klinowska TC, Alexander CM, Georges-Labouesse E, Van der Neut R, Kreidberg JA, Jones CJ, Sonnenberg A, Streuli CH. Epithelial development and differentiation in the mammary gland is not dependent on alpha 3 or alpha 6 integrin subunits. Dev Biol. 2001;233:449–67.
Lambert AW, Ozturk S, Thiagalingam S. Integrin signaling in mammary epithelial cells and breast cancer. ISRN Oncol. 2012;2012:493283.
Leung JY, Kolligs FT, Wu R, Zhai Y, Kuick R, Hanash S, Cho KR, Fearon ER. Activation of AXIN2 expression by beta-catenin-T cell factor. A feedback repressor pathway regulating Wnt signaling. J Biol Chem. 2002;277:21657–65.
Li Y, Welm B, Podsypanina K, Huang S, Chamorro M, Zhang X, Rowlands T, Egeblad M, Cowin P, Werb Z, et al. Evidence that transgenes encoding components of the Wnt signaling pathway preferentially induce mammary cancers from progenitor cells. Proc Natl Acad Sci U S A. 2003;100:15853–8.
Li N, Zhang Y, Naylor MJ, Schatzmann F, Maurer F, Wintermantel T, Schuetz G, Mueller U, Streuli CH, Hynes NE. β1 integrins regulate mammary gland proliferation and maintain the integrity of mammary alveoli. EMBO J. 2005;24:1942–53.
Lin R, Cerione RA, Manor D. Specific contributions of the small GTPases rho, Rac, and Cdc42 to Dbl transformation. J Biol Chem. 1999;274:23633–41.
Lindvall C, Zylstra CR, Evans N, West RA, Dykema K, Furge KA, Williams BO. The Wnt co-receptor Lrp6 is required for normal mouse mammary gland development. PLoS One. 2009;4:e5813.
Maya-Mendoza A, Bartek J, Jackson DA, Streuli CH. Cellular microenvironment controls the nuclear architecture of breast epithelia through β1-integrin. Cell Cycle. 2016;15:345–56.
Metcalfe AD, Gilmore A, Klinowska T, Oliver J, Valentijn AJ, Brown R, Ross A, MacGregor G, Hickman JA, Streuli CH. Developmental regulation of Bcl-2 family protein expression in the involuting mammary gland. J Cell Sci. 1999;112(Pt 11):1771–83.
Moreno-Layseca P, Ucar A, Sun H, Wood A, Olabi S, Gilmore AP, Brennan K, Streuli CH. The requirement of integrins for breast epithelial proliferation. Eur J Cell Biol. 2017;96(3):227–39.
Muschler J, Streuli CH. Cell–matrix interactions in mammary gland development and breast cancer. Cold Spring Harb Perspect Biol. 2010;2(10):a003202.
Naylor MJ, Li N, Cheung J, Lowe ET, Lambert E, Marlow R, Wang P, Schatzmann F, Wintermantel T, Schüetz G, et al. Ablation of beta1 integrin in mammary epithelium reveals a key role for integrin in glandular morphogenesis and differentiation. J Cell Biol. 2005;171:717–28.
Prince JM, Klinowska TCM, Marshman E, Lowe ET, Mayer U, Miner J, Aberdam D, Vestweber D, Gusterson B, Streuli CH. Cell-matrix interactions during development and apoptosis of the mouse mammary gland in vivo. Dev Dyn. 2002;223:497–516.
Rooney N, Wang P, Brennan K, Gilmore AP, Streuli CH. The integrin-mediated ILK-Parvin-αPix signaling axis controls differentiation in mammary epithelial cells. J Cell Physiol. 2016;231:2408–17.
Shackleton M, Vaillant F, Simpson KJ, Stingl J, Smyth GK, Asselin-Labat ML, Wu L, Lindeman GJ, Visvader JE. Generation of a functional mammary gland from a single stem cell. Nature. 2006;439:84–8.
Shehata M, Teschendorff A, Sharp G, Novcic N, Russell IA, Avril S, Prater M, Eirew P, Caldas C, Watson CJ, et al. Phenotypic and functional characterisation of the luminal cell hierarchy of the mammary gland. Breast Cancer Res. 2012;14:R134.
Shutes A, Onesto C, Picard V, Leblond B, Schweighoffer F, Der CJ. Specificity and mechanism of action of EHT 1864, a novel small molecule inhibitor of Rac family small GTPases. J Biol Chem. 2007;282:35666–78.
Stingl J. Detection and analysis of mammary gland stem cells. J Pathol. 2009;217:229–41.
Streuli CH. Integrins as architects of cell behavior. Mol Biol Cell. 2016;27:2885–8.
Streuli CH, Akhtar N. Signal co-operation between integrins and other receptor systems. Biochem J. 2009;418:491–506.
Streuli CH, Bailey N, Bissell MJ. Control of mammary epithelial differentiation: basement membrane induces tissue-specific gene expression in the absence of cell-cell interaction and morphological polarity. J Cell Biol. 1991;115:1383–95.
Taddei I, Deugnier MA, Faraldo MM, Petit V, Bouvard D, Medina D, Fässler R, Thiery JP, Glukhova M. Beta1 integrin deletion from the basal compartment of the mammary epithelium affects stem cells. Nat Cell Biol. 2008;10:716–22.
Teulière J, Faraldo MM, Deugnier MA, Shtutman M, Ben-Ze’ev A, Thiery JP, Glukhova MA. Targeted activation of β-catenin signaling in basal mammary epithelial cells affects mammary development and leads to hyperplasia. Development. 2005;132:267–77.
Valls G, Codina M, Miller RK, Valle-Pérez BD, Vinyoles M, Caelles C, McCrea PD, de Herreros AG, Duñach M. Upon Wnt stimulation, Rac1 activation requires Rac1 and Vav2 binding to p120-catenin. J Cell Sci. 2012;125:5288–301.
van Amerongen R, Bowman AN, Nusse R. Developmental stage and time dictate the fate of Wnt/β-catenin-responsive stem cells in the mammary gland. Cell Stem Cell. 2012;11:387–400.
Van Keymeulen A, Rocha AS, Ousset M, Beck B, Bouvencourt G, Rock J, Sharma N, Dekoninck S, Blanpain C. Distinct stem cells contribute to mammary gland development and maintenance. Nature. 2011;479:189–93.
Veltmaat JM, Van Veelen W, Thiery JP, Bellusci S. Identification of the mammary line in mouse by Wnt10b expression. Dev Dyn. 2004;229:349–56.
Walker S, Foster F, Wood A, Owens T, Brennan K, Streuli CH, Gilmore AP. Oncogenic activation of FAK drives apoptosis suppression in a 3D-culture model of breast cancer initiation. Oncotarget. 2016;7(43):70336–52.
Wang P, Ballestrem C, Streuli CH. The C terminus of Talin links integrins to cell cycle progression. J Cell Biol. 2011;195:499–513.
Wu X, Tu X, Joeng KS, Hilton MJ, Williams DA, Long F. Rac1 activation controls nuclear localization of β-catenin during canonical Wnt signaling. Cell. 2008;133:340–53.
Zeng YA, Nusse R. Wnt proteins are self-renewal factors for mammary stem cells and promote their long-term expansion in culture. Cell Stem Cell. 2010;6:568–77.
Zuo Y, Oh W, Ulu A, Frost JA. Minireview: mouse models of rho GTPase function in mammary gland development, tumorigenesis, and metastasis. Mol Endocrinol. 2016;30:278–89.
The authors are grateful for support from Breast Cancer Now, as well as for the Wellcome Trust for funding The Wellcome Trust Centre for Cell-Matrix Research.
This work was supported by Wellcome Trust core funding for The Wellcome Trust Centre for Cell-Matrix Research, University of Manchester (grant 203128/Z/16/Z).
Availability of data and materials
All relevant information is provided in the Methods section of the text.
Mice were housed and maintained at the University of Manchester according to UK Home Office guidelines for animal research. Animals were bred under Home Office Project Licence 40/3155 and approved by the University of Manchester ethical review process. Experiments were conducted in accordance with Section 1 regarding killing of animals in the Animals (Scientific Procedures) Act 1986.
Consent for publication
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file 1:
Figure S1. Tamoxifen treatment does not affect cellular distribution or organoid formation. a 4-OHT did not affect the frequency of basal or luminal progenitor cells. Primary MECs from WT mice were cultured at a density of 5 × 104 cells/well with or without 100 nM 4-OHT. Cells were dissociated using trypsin/EDTA at day 3, passed through a 40-μm filter and stained for CD45, CD31, EpCAM, α6-integrin (CD49f), and α2-integrin (CD49b) to distinguish the populations of basal/stem, total luminal, luminal progenitor, and differentiated luminal cells. b Quantification of the four populations with or without 4-OHT (n = 3). Statistical significance was determined by Student’s t test for paired samples. Error bars in the graph represent SEM. ns Non-significant. c Organoid numbers in WT cells treated with 4-OHT. Primary MECs were isolated from β1-integrinfx/fx mice that do not contain CreESR and cultured as single cells in organoid media at 5 × 105 cells/ml. MECs were collected at day 3, dissociated into single cells, and re-cultured at 2 × 103 cells/cm2. Solid and hollow organoids were counted at day 10 and divided by the number of cells seeded at day 0 to calculate the percentage of organoids formed from WT cells with or without 4-OHT (n = 3). Statistical significance was determined by Student’s t test for paired samples. Error bars in the graph represent SEM. ns Non-significant. (PDF 479 kb)
Additional file 2:
Figure S2. Mammospheres of CD49f-, EpCAM- and CD49b-expressing cells. Before plating, the cells were selected by FACS analysis for those expressing CD49f, EpCAM and CD49b. Representative images of organoids are shown for cells with high or low levels of CD49f, high or low levels of EpCAM, and high of low levels of CD49b. (PDF 445 kb)
Additional file 3:
Figure S3. Nuclear translocation of β-catenin in response to Wnt3a and GSK3i. Immunoblotting shows nuclear fractions of control and integrin-depleted cells after cells were treated with Wnt3a or GSK3i with antibodies to β-catenin or Lamin-B1. (PDF 151 kb)
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
About this article
Cite this article
Olabi, S., Ucar, A., Brennan, K. et al. Integrin-Rac signalling for mammary epithelial stem cell self-renewal. Breast Cancer Res 20, 128 (2018). https://doi.org/10.1186/s13058-018-1048-1
- Mammary epithelial cells
- Stem cells
